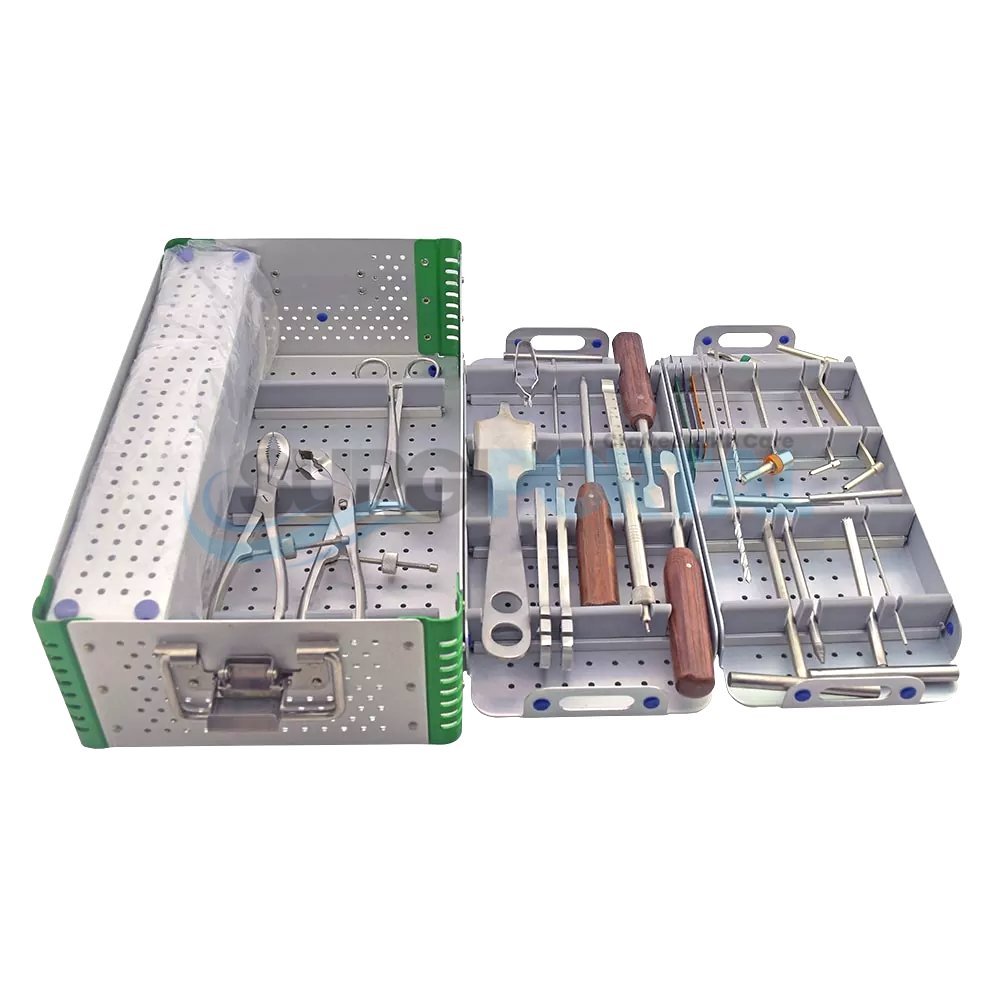

4.5mm Large Fragment Instruments Set Of Orthopedic Instriments

Heavy-Duty Orthopedic Trauma Instrument System

The 4.5mm Large Fragment Instruments Set is a comprehensive orthopedic surgical toolkit developed for the fixation of major long bone fractures, including femur, tibia, and humerus procedures. It is fully compatible with AO-style 4.5 mm plating systems and is designed to support high-stress fracture stabilization in trauma surgery.

This system includes a complete range of instruments required for plate fixation workflows, such as drill guides, countersinks, taps, plate benders, reduction forceps, bone-holding forceps, screw-holding tools, periosteal elevators, and a precision depth gauge.

Each instrument is engineered for accurate alignment and controlled application of fixation hardware, ensuring stable biomechanical constructs even in complex fracture patterns. The inclusion of ergonomic long-handle tools improves surgeon comfort and control during demanding procedures.

Manufactured from surgical-grade stainless steel (AISI 316L), the instruments provide excellent corrosion resistance, mechanical strength, and long-term durability. The satin/matte finish reduces glare under surgical lighting and improves visibility in the operative field.

All components are fully autoclavable and designed for repeated clinical use. The set is organized in a silicone-insert sterilization tray, ensuring efficient workflow, instrument protection, and quick OR readiness.

Key Features

• Complete AO-standard 4.5 mm large fragment orthopedic system
• Designed for femur, tibia, and humerus fracture fixation
• Includes drilling, tapping, bending, reduction, and holding tools
• Compatible with cortical plate and screw systems
• High-strength surgical stainless steel construction (AISI 316L)
• Ergonomic long-handled instruments for improved control
• Precision drill guides ensure accurate screw trajectory
• Satin finish reduces operating room glare
• Organized silicone sterilization tray system
• CE and ISO 13485 certified orthopedic instrumentation
• Suitable for trauma and reconstructive surgery

Product Contents & Sizes

• Drill / Sleeve Guides: Ø3.2 mm & Ø4.5 mm – Qty 4
• Drill Bits: Ø3.2 mm × 115 mm, Ø4.5 mm × 115 mm – Qty 2 each
• Countersink Drill: Ø6.0 mm – Qty 1
• Cortex Tap 4.5 mm – Qty 1
• Depth Gauge (0–90 mm) – Qty 1
• Plate Benders (4.5 mm plates) – Qty 2
• Bone Holding Forceps 250 mm – Qty 1
• Reduction Forceps 200 mm – Qty 1
• Screw Holding Forceps 180 mm – Qty 1
• Periosteal Elevators (8 mm & 15 mm) – Qty 2

Technical Specifications

Applications

This large fragment instrument set is commonly used for:

• Femur fracture fixation
• Tibia and fibula reconstruction
• Humerus fracture repair
• Trauma surgery in large bone fractures
• Reconstructive orthopedic procedures
• AO plating system surgeries

Benefits

Strong Trauma Fixation

Designed for high-load long bone stabilization.

Accurate Surgical Alignment

Precision guides ensure correct screw placement.

Surgeon Comfort

Ergonomic long handles reduce fatigue in complex cases.

Durable Construction

Built for repeated autoclave sterilization cycles.

Efficient OR Workflow

Organized tray ensures fast setup and instrument access.

FAQs

What is this set used for?

It is used for fixation of large bone fractures using 4.5 mm orthopedic plating systems.

Is it compatible with AO systems?

Yes, it is designed for AO-standard large fragment systems.

Can it be sterilized?

Yes, all instruments are fully autoclavable.

What material is used?

It is made from AISI 316L surgical-grade stainless steel.

What surgeries is it used in?

It is used in femur, tibia, and humerus fracture surgeries.

Is it reusable?

Yes, all instruments are reusable and designed for long-term use.
