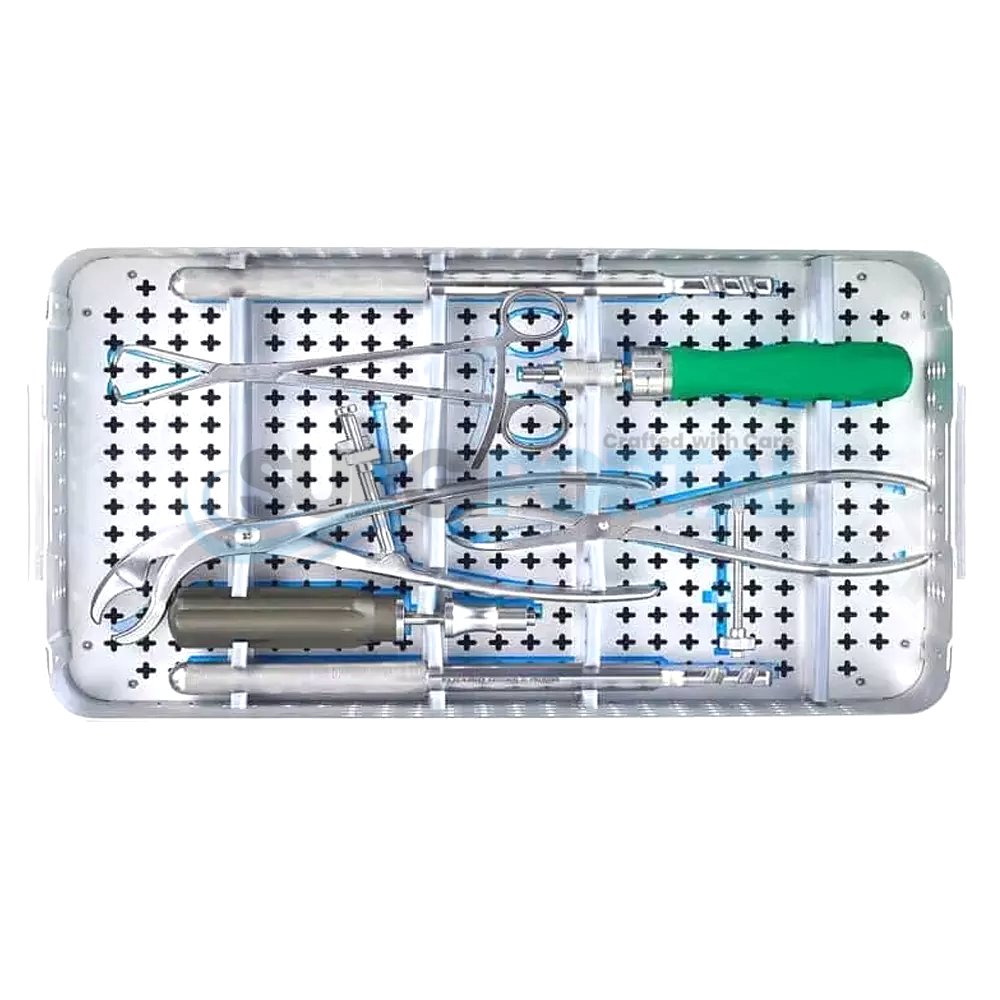

Lower Limb Bone Plate Surgery Orthopedic Large Fragment Instrument Set

Description:

This Lower Limb Bone Plate Surgery Orthopedic Large Fragment Instrument Set  is tailored for fixation of lower limb bones (femur, tibia) using large fragment implants. Comprising over 45 tools—including drill guides, taps, countersinks, reduction forceps, and contouring tools—this set supports 4.5 mm and 6.5 mm plate systems. Manufactured to AO standards using high-strength stainless steel, it ensures precise implant placement and robust bone fixation in major orthopedic procedures.

Key Features:

• Complete AO-standard set for 4.5 mm and 6.5 mm systems

• Includes plate bending tools for anatomical contouring

• Multi-size drill guides and depth gauges for screw accuracy

• Ergonomic reduction and plate holding forceps for large bones

• Hardened and precision-machined instruments ensure accuracy

• Corrosion-resistant stainless steel with satin finish

• Fully autoclavable, reusable, and sterilizable

• Organized tray layout for efficient surgical workflow

• CE and ISO certified for trauma and orthopedic hospital use

• Excellent durability for repeated high-volume procedures

Product Names & Sizes Included:

• Drill Guides / Sleeves: Ø3.2 mm, Ø4.5 mm, Ø6.5 mm – Qty 6

• Drill Bits: Ø3.2 × 115 mm, Ø4.5 × 115 mm – Qty 2 each

• Countersink Drill: Ø6 mm & Ø8 mm – Qty 1 each

• Screw Taps: Cortex Tap 4.5 mm, Cancellous Tap 6.5 mm – Qty 1 each

• Depth Gauge (0–90 mm) – Qty 1

• Plate Benders for 4.5 mm thick plates – Qty 2

• Self-Centering Bone Holding Forceps 250 mm – Qty 1

• Reduction Forceps 200–230 mm – Qty 2

• Screw Holding Forceps – Qty 1

• Periosteal Elevators (8 mm, 15 mm) – Qty 2

Technical Specifications:

• Material: Surgical stainless steel AISI 316L

• Finish: Satin/matte non-glare

• Tray: Silicone-insert sterilizable case

• Standards: AO-compliant; CE and ISO 13485 certified
